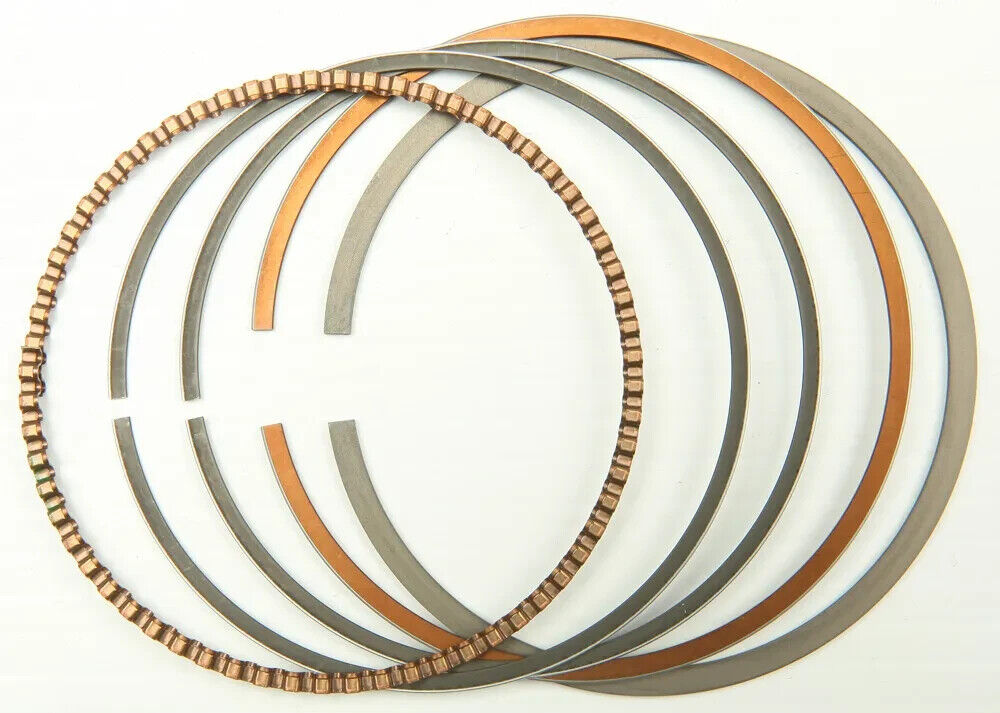

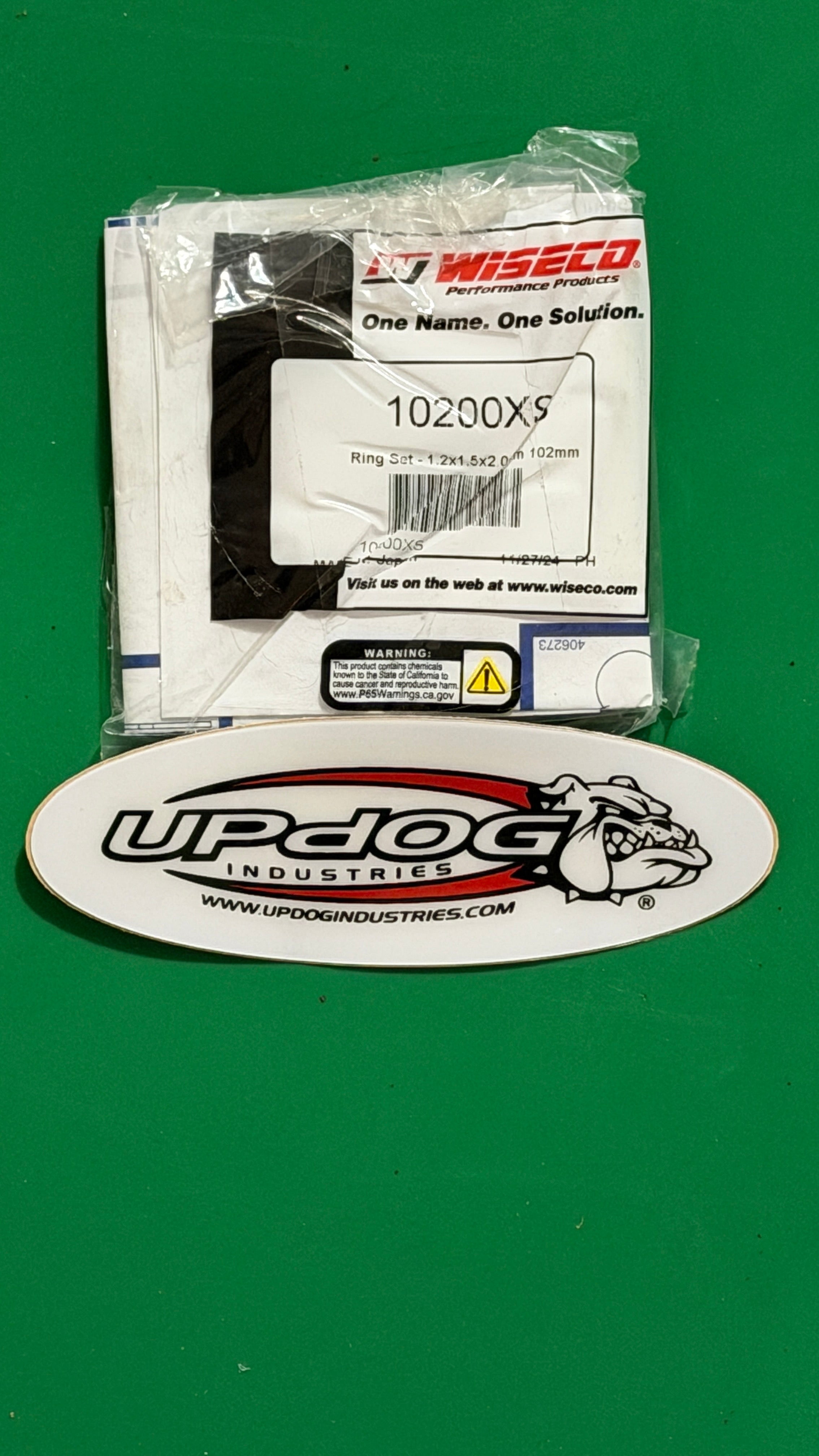

Wiseco 10200XS high-performance 102.00mm piston ring set

The Wiseco 10200XS is a high-performance 102.00mm piston ring set designed for large-displacement single-cylinder engines found in ATVs, UTVs, and motorcycles.

Fitment

• Piston Compatibility: These rings are proprietary and will only fit Wiseco or JE pistons. They are not compatible with OEM or other aftermarket brands.

• Bore Size: Designed for a 102.00mm cylinder bore.

• Cylinder Type: Compatible with cast iron, Nikasil (nickel ceramic), boron composite, and Electrofusion bores.

• Caution: Do not use these rings in chrome-plated bores, as this will cause immediate engine damage.

The Wiseco 10200XS Ring Set fits a wide variety of 660cc to 700cc models, including:

• Yamaha ATVs & UTVs:

  • Raptor 660R (2001–2005) and Raptor 700/700R (2006–2023)

  • Grizzly 660 (2002–2008) and Grizzly 700 (2007–2023)

  • Rhino 660 (2004–2007) and Rhino 700 (2008–2013)

  • Viking 700 and Kodiak 700 models.

• Honda ATVs:

  • TRX680 Rincon (2006–2023)

  • TRX700XX (2008–2009)

  • Pioneer 700 (2014–2023)

• KTM Motorcycles:

  • LC4 620, 625, and 640 models (1994–2008).

• Arctic Cat:

  • 700 H1 EFI and Prowler 700 models (2008–2016).

Specifications

This "XS" style set is engineered for 4-stroke engines to provide a superior seal and oil control:

• Top Ring: 1.2mm Alloy Steel, Chrome faced for high-heat resistance.

• Second Ring: 1.5mm Cast Iron, Phosphate-coated.

• Oil Ring: 2.0mm Stainless Steel, Chrome-faced three-piece assembly.
