Wiseco Pro-Lite Piston Kit (52.50mm Bore / Standard Size / Double Ring)

Part Number: 651M05250

Fitment: Kawasaki KX100 (1995–2013)

Product Overview

Upgrade or rebuild your 2-stroke top end with the Wiseco Pro-Lite Forged Piston Kit. Engineered and manufactured in the USA, Wiseco pistons are CNC-machined from high-silicon, low-expansion aluminum alloy to deliver superior structural integrity, weight reduction, and exceptional heat transfer compared to stock cast pistons.

This double-ring setup offers enhanced ring sealing and extended top-end durability, making it an ideal choice for high-RPM trail riding, motocross, or general rebuilds on your KX100.

Key Features & Benefits

• Forged High-Silicon Alloy: High-density grain structure provides extreme tensile strength and superior wear resistance.

• Double-Ring Design: Provides exceptional compression sealing and heat dissipation for improved power stability.

• Pro-Lite Weight Savings: Minimizes reciprocating mass to deliver faster revs and immediate throttle response.

• Precision CNC Machining: Engineered to exacting tolerances for optimal cylinder clearances and long service life.

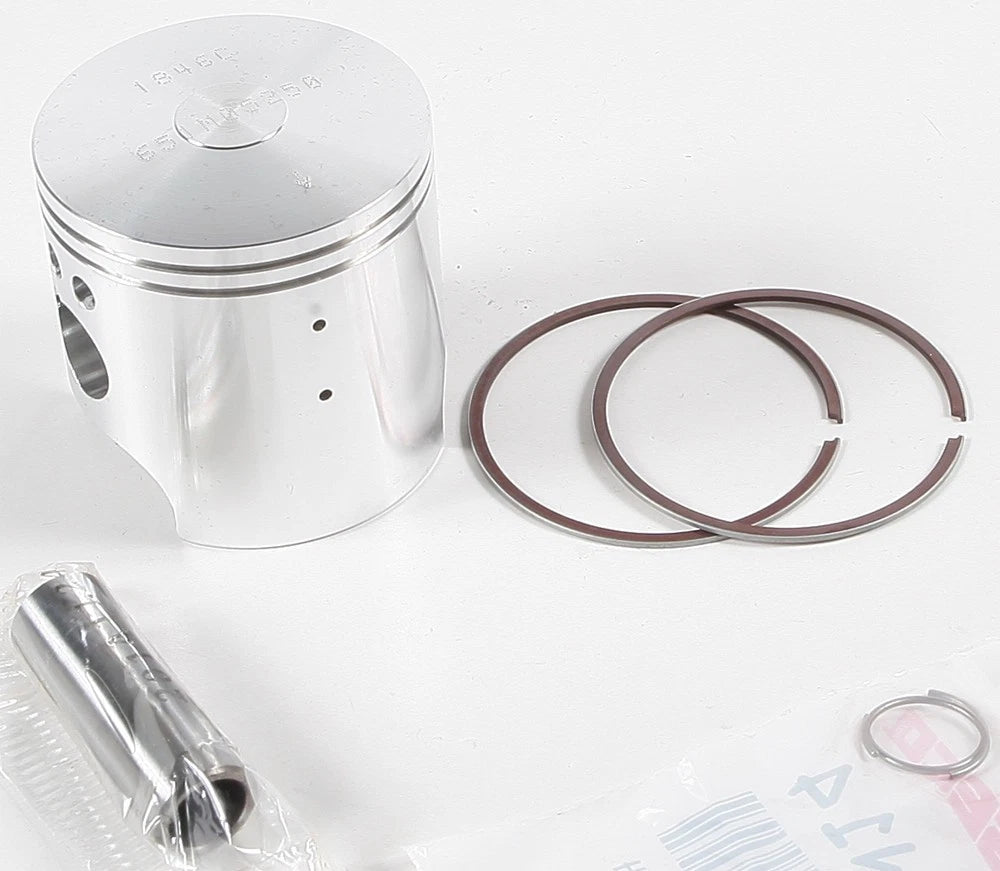

Package Includes

• 1x Wiseco Forged Pro-Lite Piston (651M05250)

• 1x High-Performance Double Ring Set (2067CD - 52.50mm)

• 1x Wrist Pin (S516)

• 2x Circlips (CW14)

Specifications

• Manufacturer: Wiseco

• MPN: 651M05250

• Engine Type: 2-Stroke ICE

• Cylinder Bore: 52.50 mm (Standard Bore)

• Piston Diameter: 52.45 mm

• Stroke: 45.80 mm

• Displacement: 99cc

Fitment

• Kawasaki KX100: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

Shipping & Store Policies

• Fast Shipping: Carefully packaged and shipped within 1 business day.

• Fitment Verification: Please verify your cylinder condition and standard 52.50mm bore requirement prior to ordering.
