Why Fitment Matters More Than You Think
A piston kit that's even a few thousandths of an inch off will cause excessive blow-by, rapid ring wear, or a seized engine. Unlike air filters, piston fitment leaves zero margin for guesswork. Before you add anything to your cart, work through this guide completely.
Step 1 — Bore Measurement Checklist
Use a quality dial bore gauge or telescoping gauge with a micrometer. Measure at three depths (top, middle, bottom of the cylinder) and in two orientations (parallel and perpendicular to the wrist pin). Record all six readings.
- ☐ Cylinder is clean and at room temperature (~68 °F / 20 °C)
- ☐ Dial bore gauge zeroed on a calibrated outside micrometer
- ☐ Measure at top of bore (just below the ring travel area)
- ☐ Measure at middle of bore
- ☐ Measure at bottom of bore (just above the transfer ports)
- ☐ Rotate gauge 90° and repeat all three depths
- ☐ Record all six measurements in a table
- ☐ Calculate taper (top vs. bottom reading) — typically must be < 0.002"
- ☐ Calculate out-of-round (parallel vs. perpendicular) — typically must be < 0.002"
If taper or out-of-round exceed the manufacturer's service limit, the cylinder must be bored or replated before a new piston kit will seat correctly.
Step 2 — Understand Standard Bore vs. Oversize
Every cylinder has a standard bore diameter listed in the OEM service manual. When a cylinder is bored to clean up wear, the diameter increases in common increments:
- +0.25 mm (0.010") — first oversize, lightest material removal
- +0.50 mm (0.020") — second oversize, common after moderate wear
- +1.00 mm (0.040") — third oversize, used when prior oversizes are already worn
Always match your piston kit's oversize designation to the actual bored diameter of your cylinder — not to what the previous owner claims was installed. Measure. Don't assume.
Ordering a piston kit before confirming your exact bore diameter is the single most common fitment mistake. A standard-bore piston in a +0.50 mm cylinder will have excessive clearance from day one and will fail prematurely. An oversized piston in a standard cylinder cannot be installed. Always measure your bore with a calibrated dial bore gauge before placing your order. If you are unsure, take the cylinder to a machine shop for confirmation.
Step 3 — Cylinder Revisions and Nikasil / Replated Cylinders
Some OEM cylinders carry a revision letter or number stamped on the cylinder jug or listed in the service manual. This indicates a factory design change — often a slightly different bore diameter tolerance or a port timing adjustment — and the corresponding piston may have a different skirt profile or ring groove position. Always cross-reference the cylinder's revision against the piston kit fitment notes.
Nikasil-plated and aftermarket-replated cylinders require pistons designed for tight clearances (typically 0.001"–0.002"). Cast-iron-sleeved cylinders allow slightly looser clearances. Check the piston manufacturer's spec sheet for the recommended piston-to-wall clearance for your specific cylinder type.
Step 4 — Brand Compatibility
Two brands cover a large portion of the powersports piston market, each with strengths for specific applications:
Namura
Namura piston kits are a value-focused OEM-replacement option for motocross, ATV, and UTV engines. They typically include the piston, rings, wrist pin, and circlips. Namura kits are a strong choice for stock-displacement rebuilds where the priority is reliable, cost-effective restoration to factory spec.

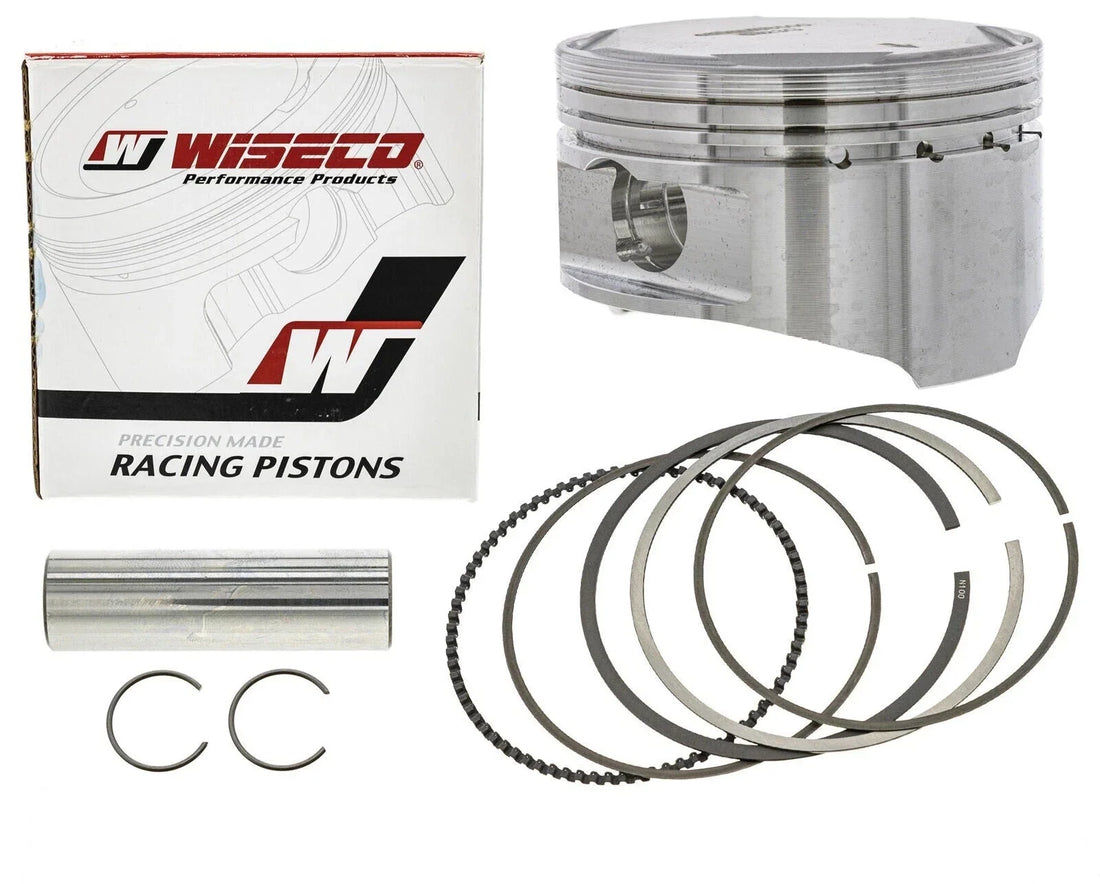

Wiseco
Wiseco pistons are forged from high-strength aluminum alloy, offering a tighter tolerance and greater durability under sustained high-RPM use. Wiseco is widely used in racing and high-hour applications where heat cycles are frequent. Many Wiseco kits are also available in additional oversize increments beyond what OEM replacements cover.
Step 5 — Confirm Your Part Number
Before finalizing your order, verify these details match the kit's fitment notes:
- ☐ Year, Make, Model, and Engine displacement
- ☐ Cylinder revision letter/number (if applicable)
- ☐ Measured bore diameter and corresponding oversize
- ☐ Piston-to-wall clearance spec vs. your cylinder type (plated vs. sleeved)
- ☐ Ring type included (single ring vs. two-ring sets vary by engine design)
- ☐ Wrist pin diameter and retainer style (circlip vs. spiral lock)
